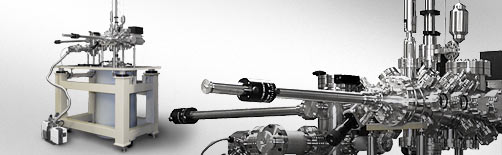

Middle end model of a compact designed ultra low temperature SPM with Super conducting Magnet. Much smaller than USM1300.
![20220802124030_4814.jpg](/upload_hi/board_photo/20220802124030_4814.jpg)
New model ultra low temperature SPM with magnet having good cost performance and ease of use. The height is minimized compared to USM1300. AFM is optional.
Features
- AFM measurement in high magnet field (Option)
- Guarantee outstanding stability and high resolution
- Operation in high magnetic field up to 8 T
- Lower than USM1300 (height 3 m), No need of construction for pit or ceiling
Applications
- Superconductivity phenomena under the ultra-low temperature, observation of the electron energy structure
- High resolution imaging for atoms and molecules
- Observation of molecules kinetics using IETS
- Observation of spin responses using STS in high magnetic field.
- Application for spin resonance measurements introducing high frequency
- Observation of high resolution magnetic structure, spin polarization STM
Specifications
SPM Head |
---|
MAX scan range (X × Y × Z) | 1.7 × 1.7 × 0.54 µm3 @ 4 K |
---|
Resolution | Atomic resolution |
---|
Base temperature | under 2 K |
---|
Magnetic Field | Maximum 8 T (Option : 12 T, 2-2-9 T vector) |
---|
STM Controller | Nanonis™ SPM control system |
---|
Base Pressure |
---|
Obs. Prep. Ch. 3.0 ×10-8 Pa, LLC 5 ×10-5 Pa |
Option |
---|
AFM Function | Tuning fork NC-AFM |
---|
